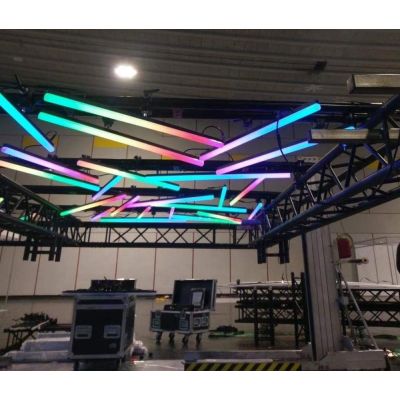

LED video bar head on Stage



Installation



1. Input: at the needle side.Output: at the hole side.



2. DI of strip connect the DO of controller



3. If the strip is more than 10M, need a signal amplifier to increase the transmit-ability

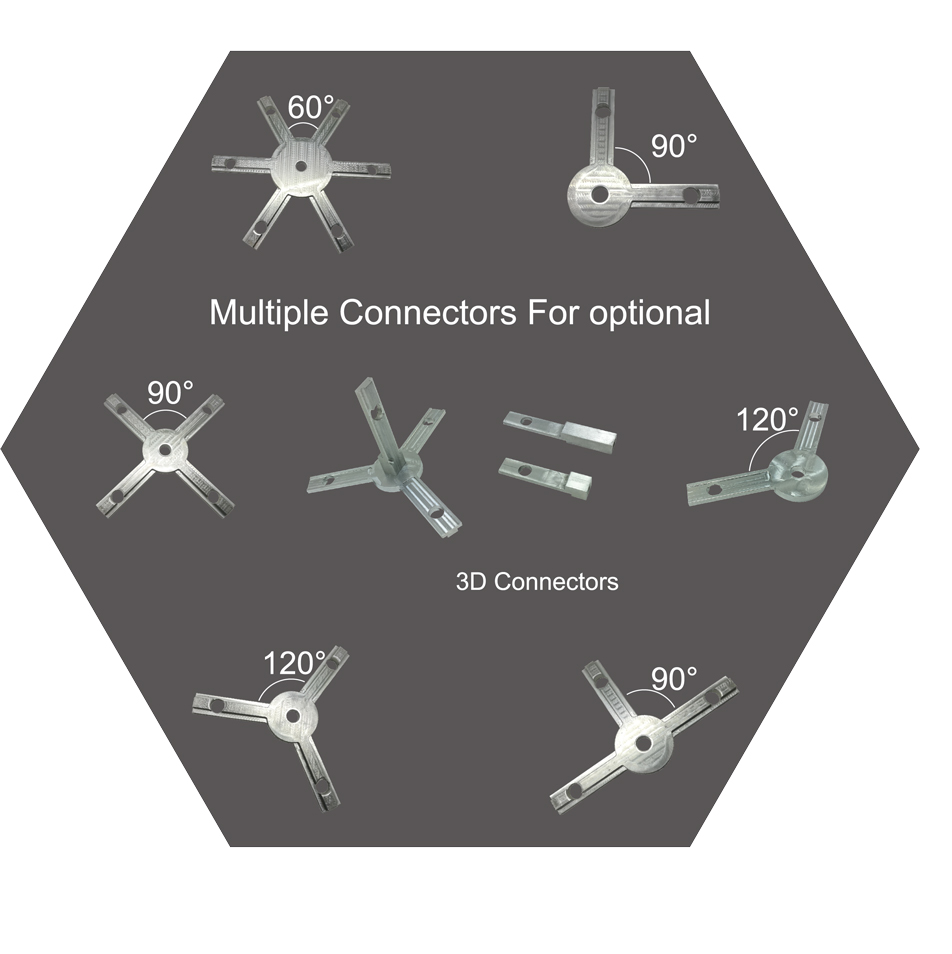

4. Special design between 2 strips which realize seamless integrate.

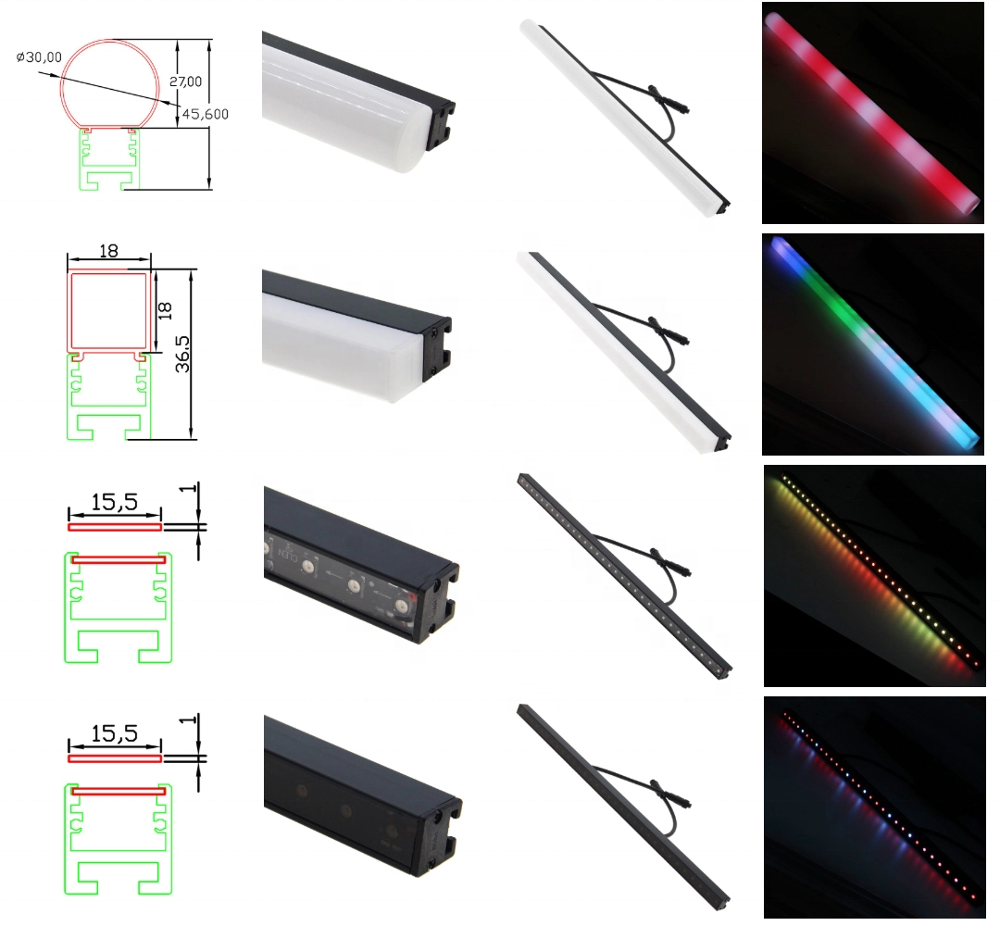

5. The lamp holder can be fixed by the internal sliding bar of the bottom sliding groove.



Note



1. Please choose our DVI control box for installation of the project.



2. Controller with 8 out port,each out port control 512 pixels



3. Power supply and controller inside the control box, the strip connect the output of controller,no need extra driver.







Advantages



1) DVI Control Mode



2) WS2813B single signal transmission



3) Single led per single pixel point Serial tansimission



4) Seamless Connection



5) Break point Continuous



6) Without voltage drop even if several joint



Applications





1. Holiday decoration lighting, Christmas party, holiday time, anywhere you want to produce a particularly eye-catching display.



2. Market Engineering lighting, architectural decoration, decoration of trees along streets, parks, urban night lighting.



3. Attractions landscaping, gardening, community night crystal decoration, hotels, shopping malls, night entertainment.
