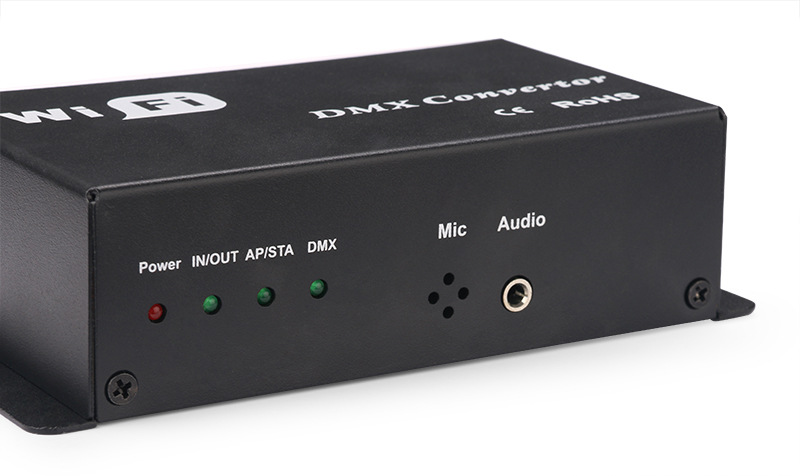

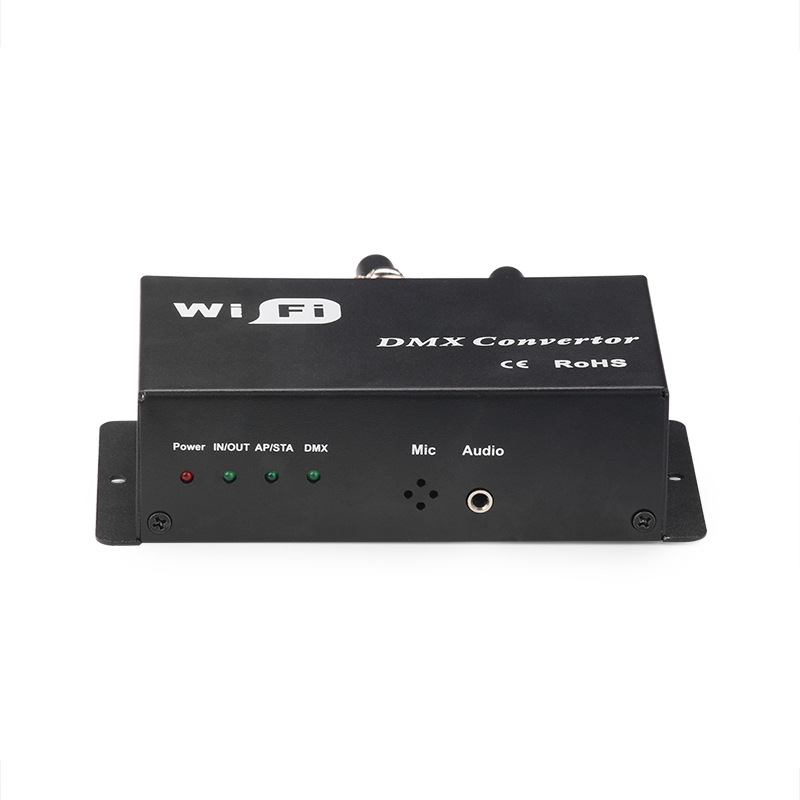

WIFI phone dmx controller

 WIFI turn DMX controller the main function for the mobile APP on the panel 512 channels of dimming, setting the scene, and dynamic model of simple and call for a small area of the bar, stage lighting control, venues and other places, the external, DMX signal through the controller can also access threshold for internal and external DMX switch, The main features of the product are as follows:

1. Music mode, 170 RGB pixels of microphone or audio signal dance with music;

2, 512 channels sliding dimming, can also select channel brightness overall brightness dimming;

3. Edit and call 512 channel static brightness scenes;

4. Edit and call 512 channels in dynamic mode;

5. Switch the output signal, switch the internal and external DMX signal through the switch interface;

6. Switch between two modes of direct connection and routing between mobile phone and controller;

------------------------

1 Software technical parameters

1.1 Control software:

1. Name: WF-DMX

2. Operating platform: Android and IOS

3. Language: Automatically switch between Chinese and English according to the phone software language system

4. Category: Communications

5. Others: Free, no plug-in

2 Controller technical specifications

1. Working voltage: DC12V-24V

2. Operating temperature: -20-60℃

3. Working power consumption: < 1W

4. Output: DMX512 signal (address 1-512)

5. Communication protocol: DMX512

6. Net weight: 312g

7. Gross weight: 596g

8. Overall size: L146*W73*H38 (mm)

9. Packing size: L252*W185*H60 (mm)
