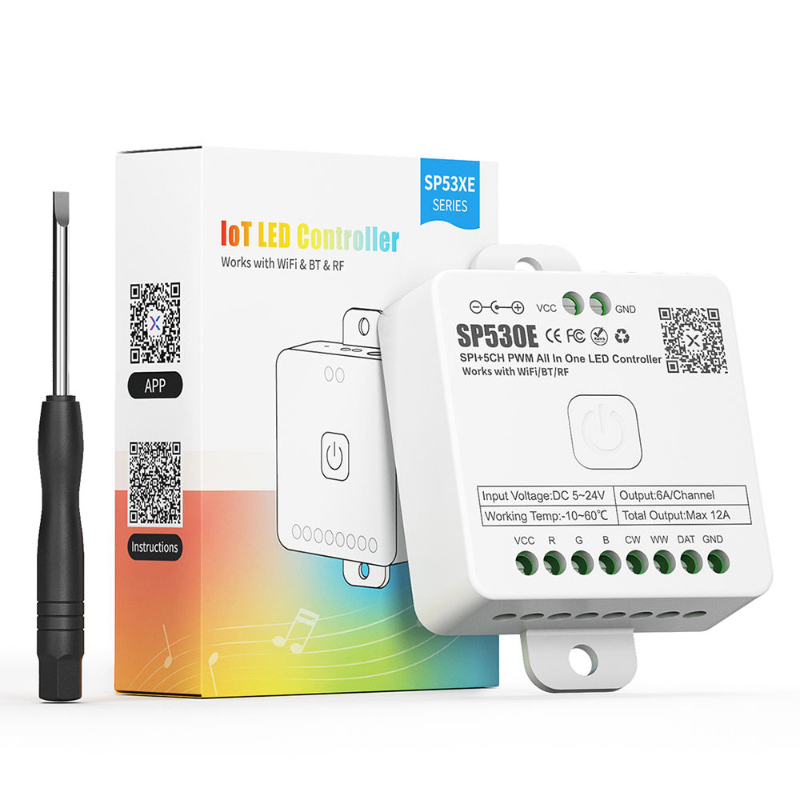

SP530E LED Controller, SPI & 5CH PWM 2-in-1 Light Controller, WiFi Bluetooth RF Control for WS2812B WS2811 RGB RGBW CCT LED Strip Light

SP530E all-in-one LED light controller supports SPI pixel strip and 5-channel PWM dimmable LED tape. Works via WiFi, Bluetooth & RF remote. Input DC 5-24V, max 12A output for home, bar, decorative lighting projects.

Product Short Description

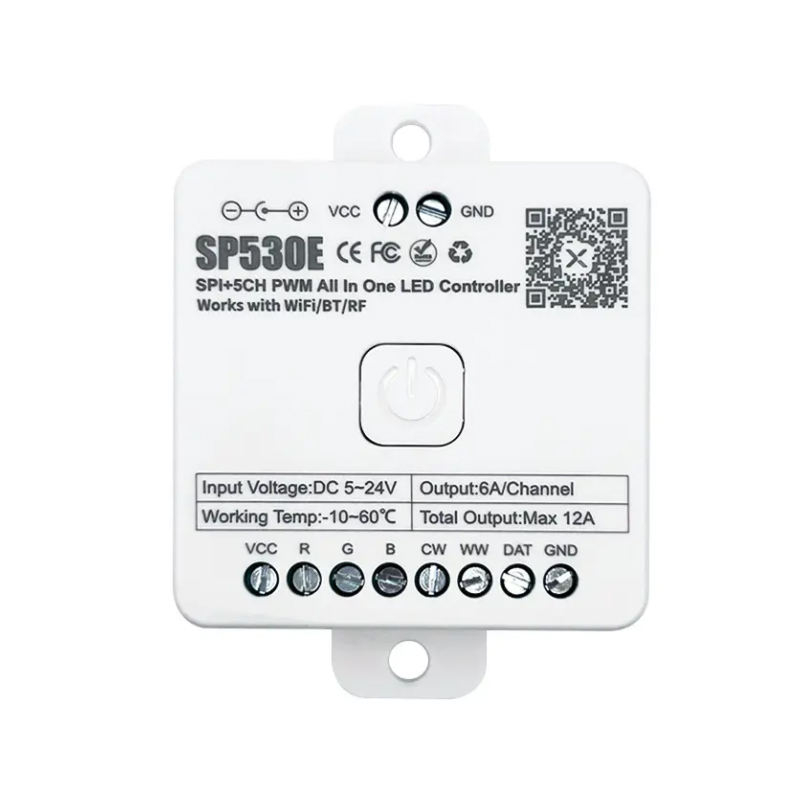

The SP530E is an all-in-one LED controller combining SPI pixel light control and 5-channel PWM dimming. It supports addressable pixel LED strips as well as RGB, RGBW and CCT dual-white light strips. With WiFi, Bluetooth and RF remote multi-control modes, it brings rich dynamic lighting effects for your decorative lighting projects. It accepts DC 5V–24V input with maximum 12A total output.

Key Features

✅ 2-IN-1 Control: Supports SPI addressable pixel strips (WS2811, WS2812B etc.) + 5CH PWM for RGB/RGBW/CCT static dimmable lights.

✅ Multi Control Ways: Operate by WiFi, Bluetooth, and RF wireless remote for flexible operation.

✅ Wide Voltage Input: DC 5V~24V wide range power input, compatible with most low-voltage LED light strips.

✅ Large Load Capacity: 6A per channel, maximum total output current up to 12A.

✅ Wide Working Temperature: Stable performance from -10℃ to 60℃, fit indoor decorative lighting.

✅ Easy Installation: Screw terminal block design, simple wiring with mounting lugs for fixed installation.
